ULN2003 5V Stepper Motor + ULN2003 Driver Board Suitable for Arduino Driver

ULN2003 Stepper Motor 5V + ULN2003 Driver Board Suitable for Arduino Driver

Features:
*100% brand new and high quality*Made of high-quality material, more durable.*Low noise, reliable to use*DC 5V 4-phase stepper motor + for Arduino driver test module board*A, B, C, D four-phase LEDs indicate the operating status of the stepper motor*Stepper motor with standard interface for direct plugging
Specifications:
*Color: As pictures show*Rated voltage: DC5V 4-phase*Step angle: 5.625 x 1/64*No-load pull-in frequency: >600 Hz*No-load pull-out frequency: >1000 Hz*Pull-in torque: >34.3 mN.m (120 Hz)*Self-positioning torque: >34.3mN.m*DC resistance: 200 Ω ± 7% (25 °C)*Insulation resistance: >10MΩ (500V)*Dielectric strength: 600 V AC / 1 mA / 1 s*Insulation grade: A*Temperature rise: <40K (120 Hz)*Noise: <40 dB (120 Hz, no load, 10 cm)
Package contents:

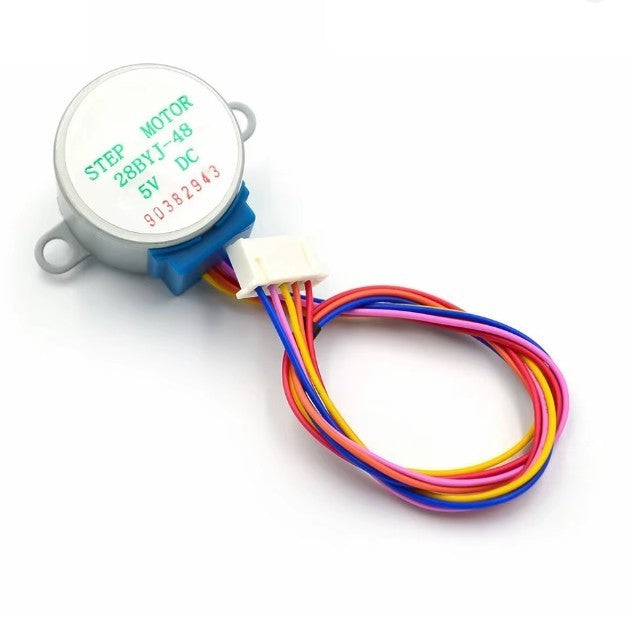

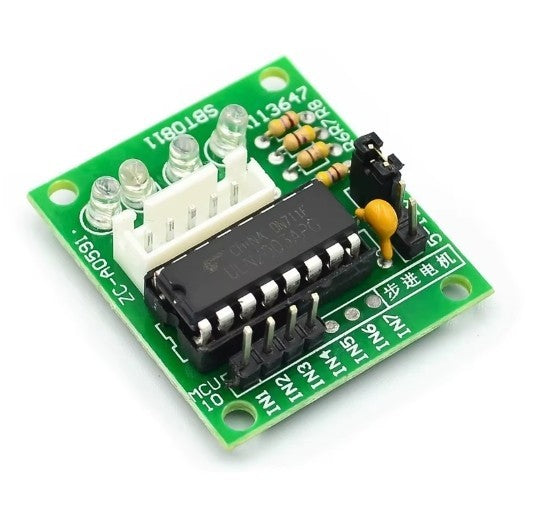

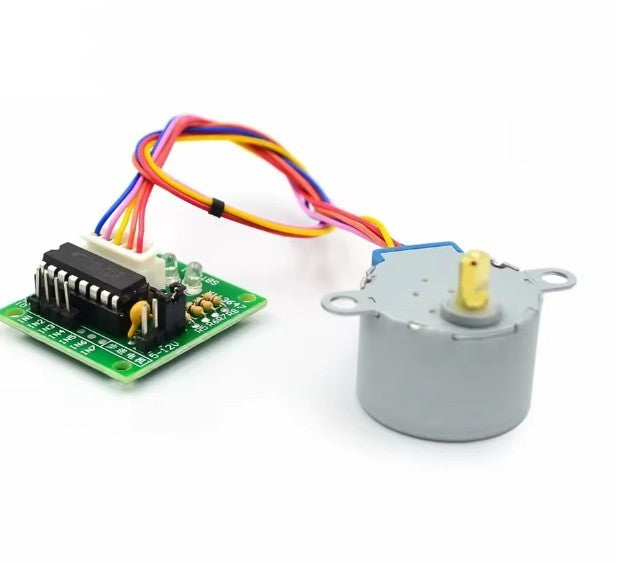

28BYJ-48 Stepper motor + ULN2003 motor driver board
Note:
The actual color of the item may be slightly different from the images
shown on the website, caused by many factors such as the brightness of your
monitor and light brightness.
