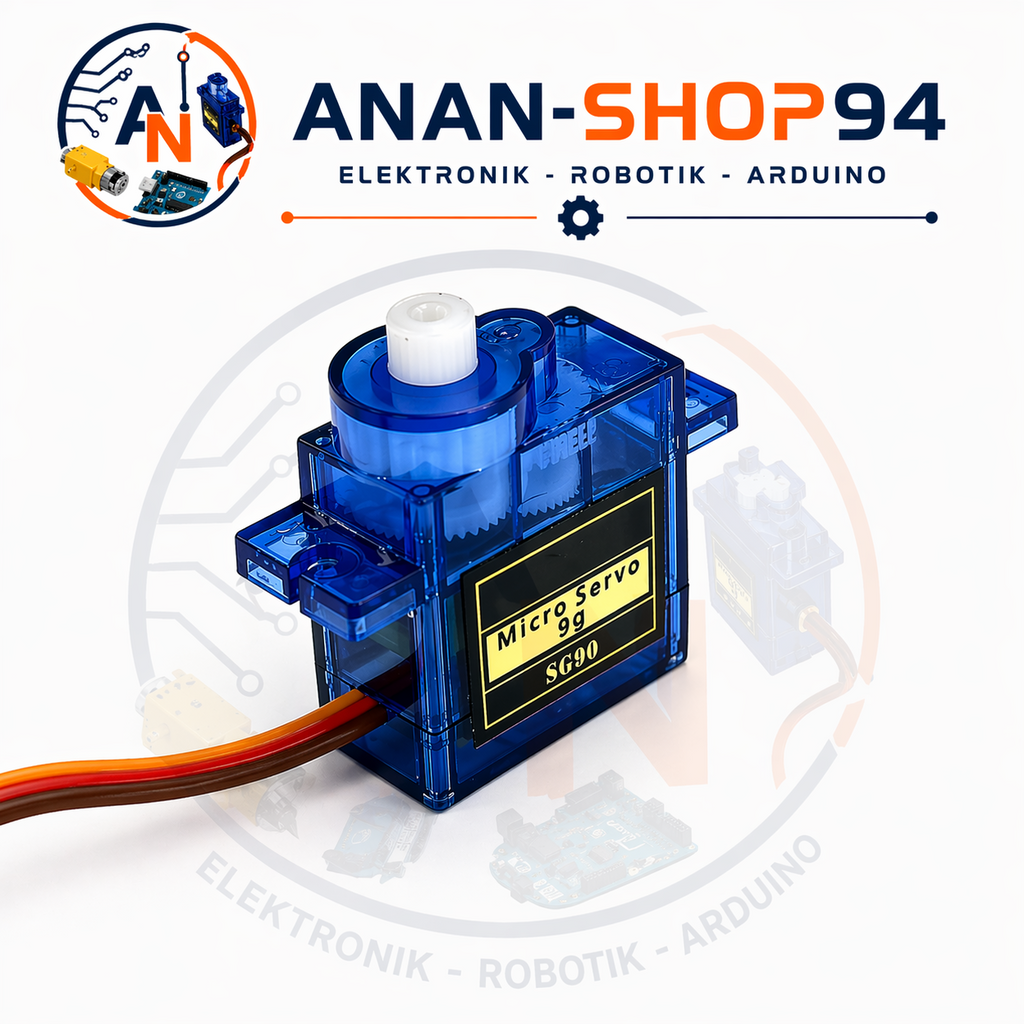

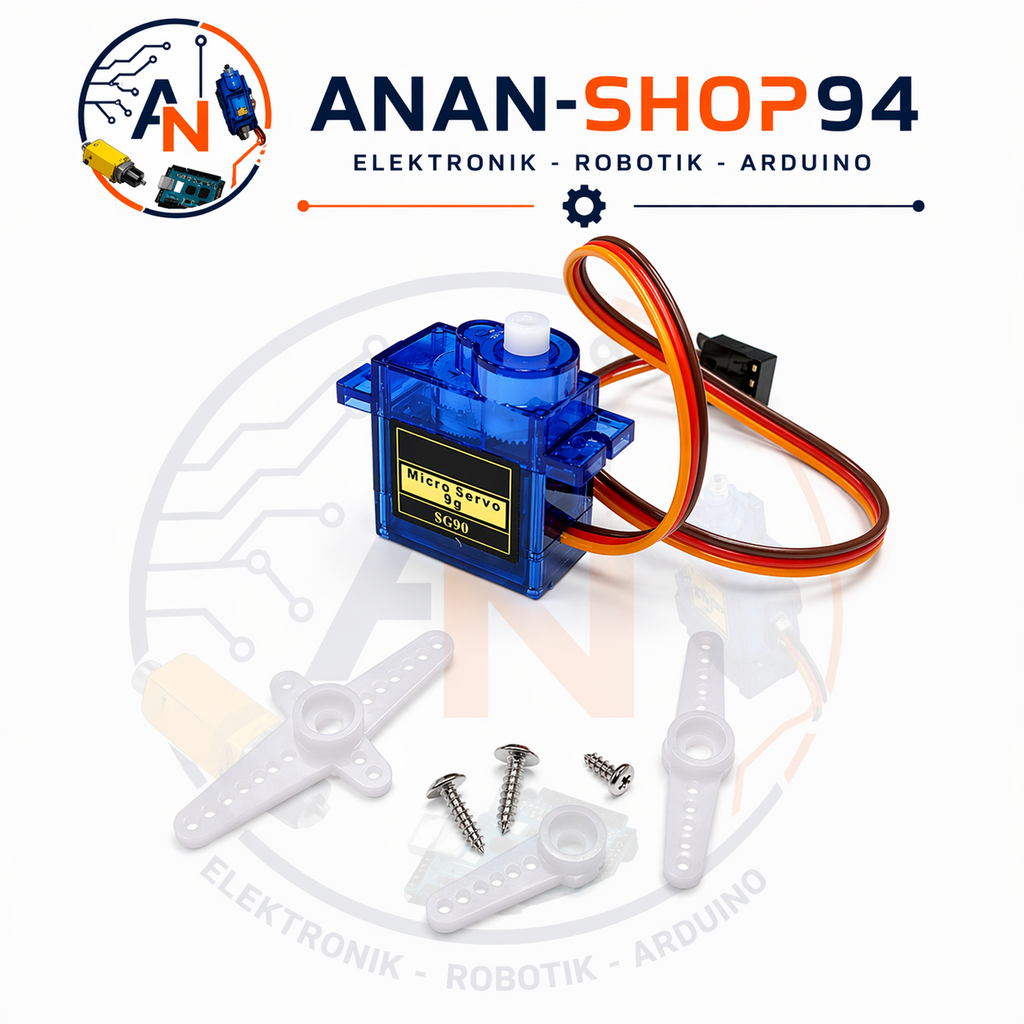

1 pc SG90 9G Micro Servo 180° for RC Drone / Car / Airplane

Technical Description:

Product Name: SG90 Servo

Product Size: 22.4 x 12.5 x 22.8 mm

Product Weight: 10 g ± 5%

Operating Voltage: 4.8 V-6 V

No-load Speed: 0.09 sec/60°

No-load Current: 90 mA

Stall Torque: 1.3 kg.cm-1.6 kg.cm

Stall Current: 750 mA ± 10%

Control Signal: Pulse width modification

Pulse Width: 500–2500 µsec

Center Position: 1500 µsec centering error ≤1°

Rotation Angle: 180°±3° (at 500~2500 µsec)

Dead Band Width: 8 µsec
