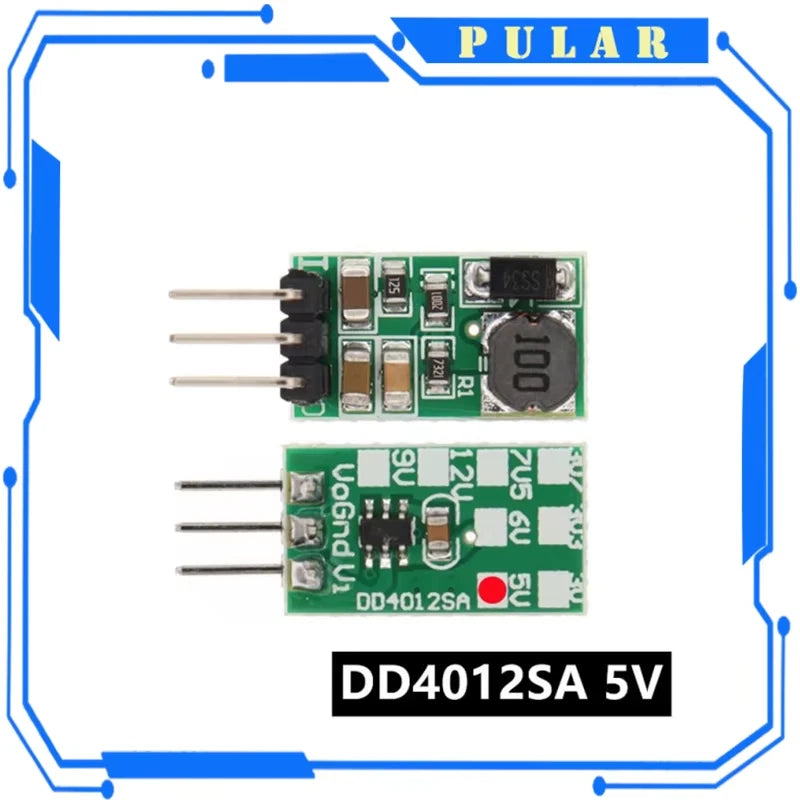

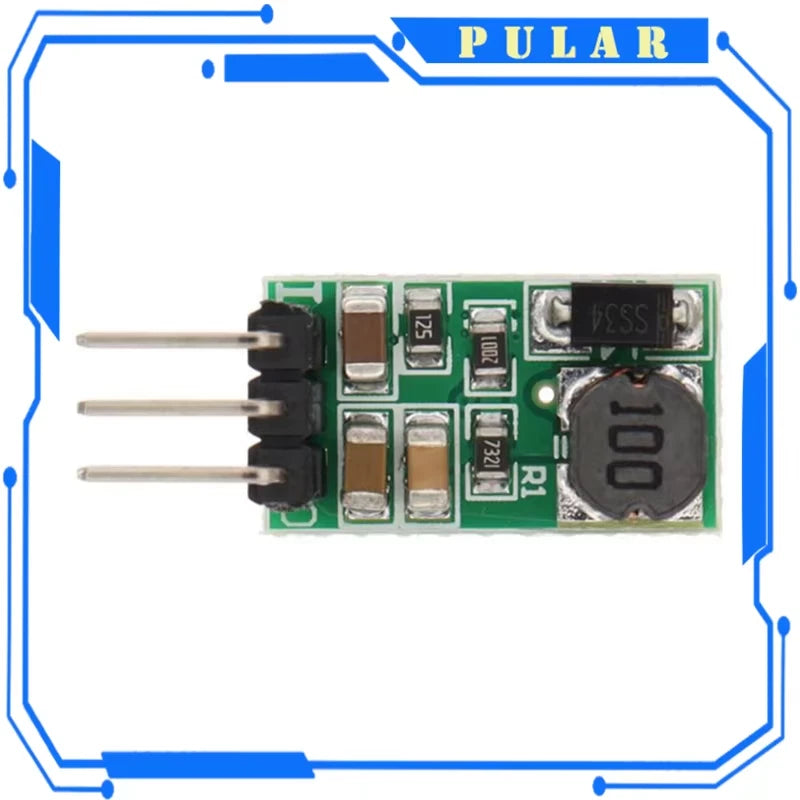

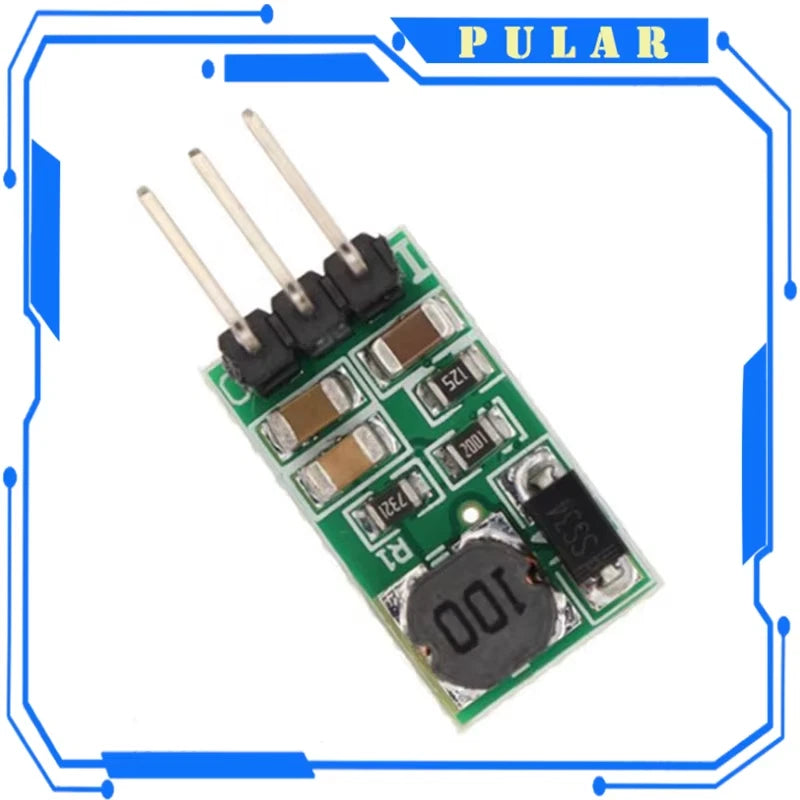

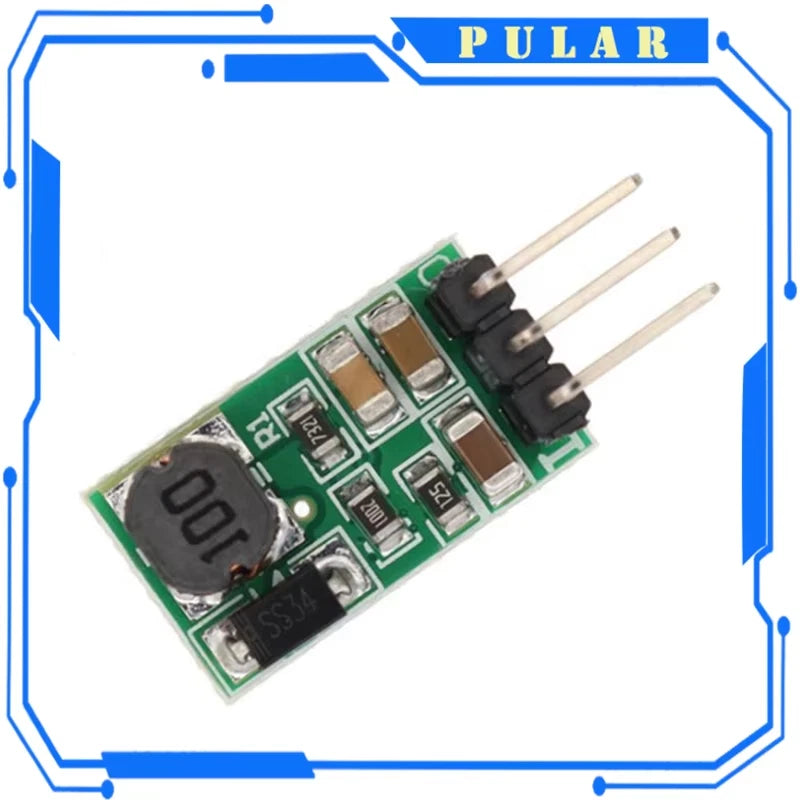

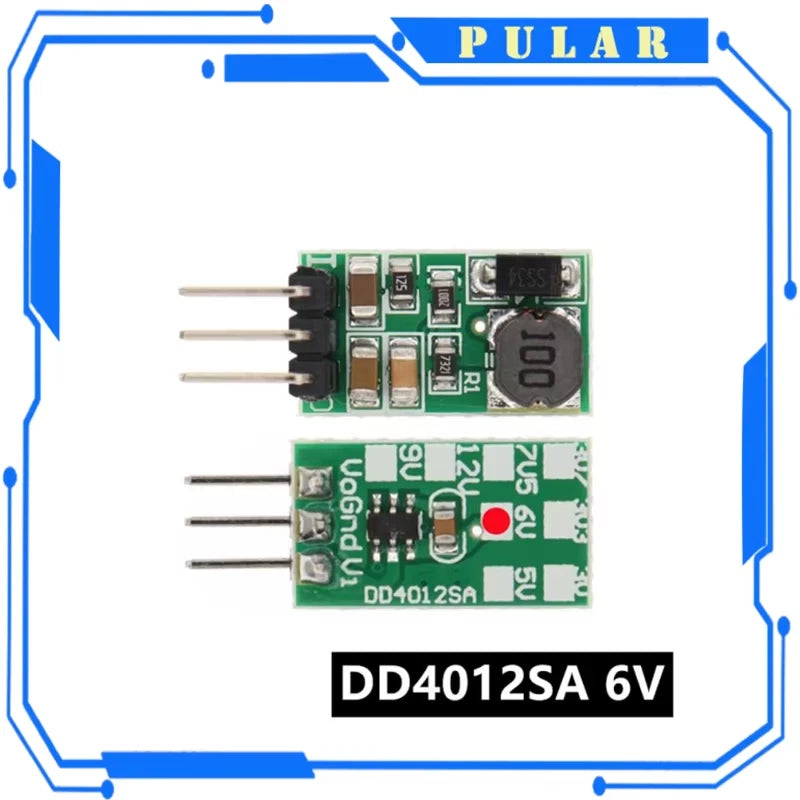

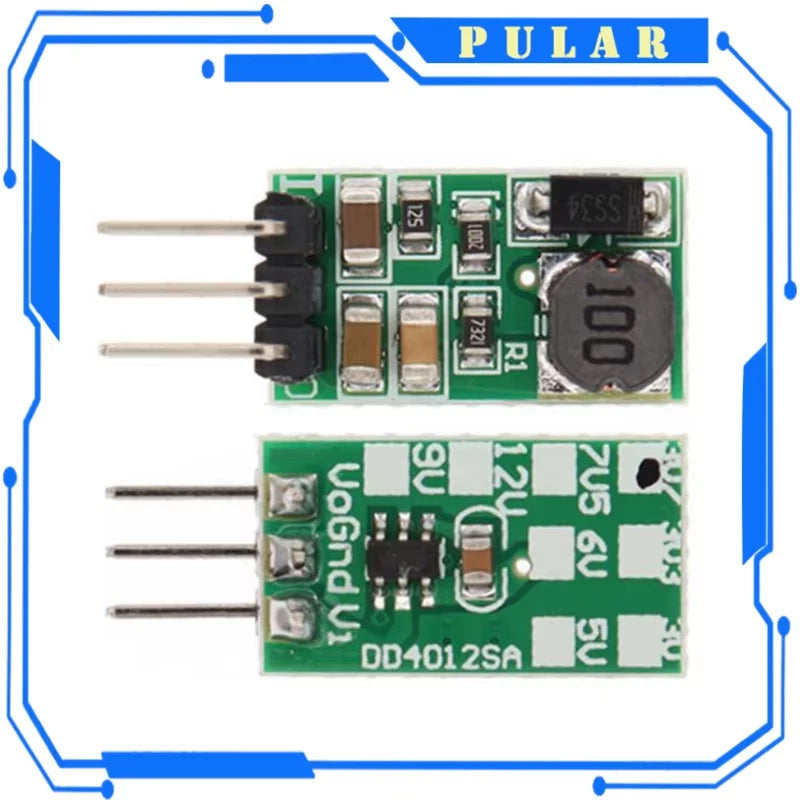

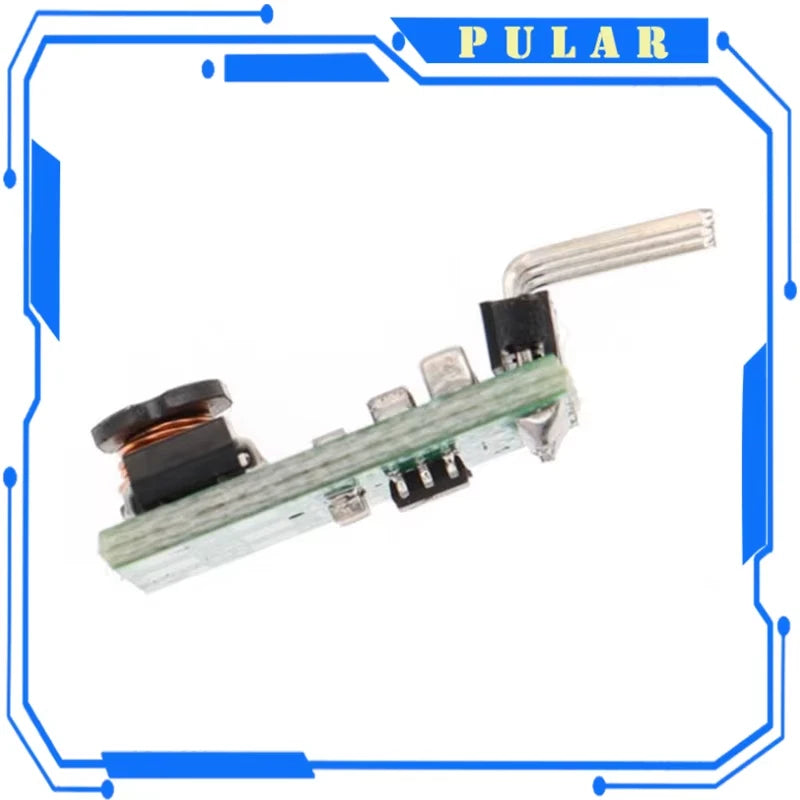

DD4012SA 1A DC 5-40V to 3V 3.3V 3.7V 5V 6V 7.5V 9V 12V Regulator DC-DC Step-Down
(5-40V) DC - 6V DC
€2,79
Skip to product information
DD4012SA 1A DC 5-40V to 3V 3.3V 3.7V 5V 6V 7.5V 9V 12V Regulator DC-DC Step-Down
€2,79
DD4012SA 1A DC 5-40V to 3V 3.3V 3.7V 5V 6V 7.5V 9V 12V Regulator DC-DC Step-Down
Description:

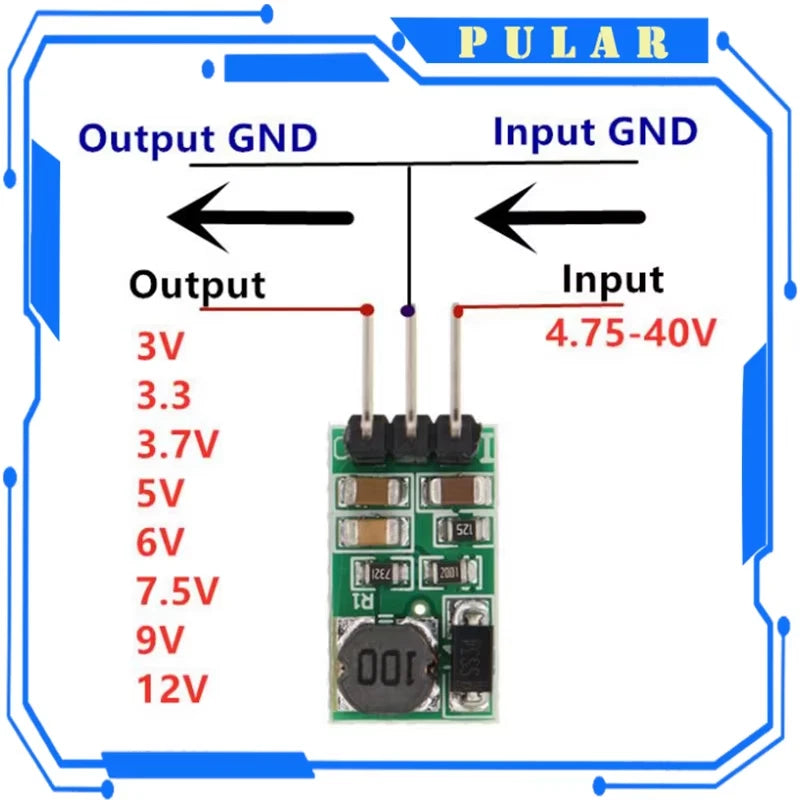

Input voltage 5 ~ 40 V, output 3.3 V 5 V
Maximum output current 1A
DC-DC step-down converter module operating frequency 550 kHz. The efficiency is 76-90%.
Quiescent current: approx. 1.5 mA
Over-temperature shutdown, input under-voltage protection, BS voltage protection, and short-circuit protection.
2.54 mm pin spacing, Arduino UNO MEGA2560 breadboard MCU development board friendly
Size without pins 18.3 mm x 10.2 mm x 6.7 mm(small)
Weight: approx. 1.3 g(very light)
Attention:
This is a DC-DC voltage converter module. When using, please observe the following:
1 The input voltage must not be greater than the maximum input range
2 The output power must not be greater than the maximum load for an extended period of time
3 The input power must be greater than the output power, as the module itself consumes power
Applications:
3.3 V 5 V MCU ARM CPU FPGA/CPLD
12V 5V to 3.3V lithium battery-powered systems
3.3 V motor
WIFI esp8266 module
CCTVcamera
Wireless module: NRF24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed power systems
Battery charger
Pre-regulator for linear regulators
