1 piece RCXAZ 14g 180° metal gear micro servo motor for RC toys

1 Piece Micro Servo Motor RCXAZ 14g 180° Metal Gear for RC Toys

• Brand: AZ

• Product Type: Servo

• Material: Metal

• Suitable for Scale: 1:36

• Features: Digital Servo, Metal Gear

• Weight: 9g

• Country of Origin: China

RCXAZ 9g plastic or iron or copper gear 1.6kg/1.8kg digital servo for fixed-wing RC airplane, robot, car, boat, ducted fan aircraft, small servo motor

Operating voltage: 3.7–6.0 V DC

Max. torque: 4.8 V≥1.20 kgf·cm; 6.0 V≥1.60 kgf·cm

No-load speed: 4.8 V ≤ 0.14 sec./60°; 6.0 V ≤ 0.12 sec./60°

Stall current: 4.8 V≦680 mA; 6.0 V≦780 mA

Consumption current* (no load): 4.8 V ≦130 mA; 6.0 V ≦150 mA

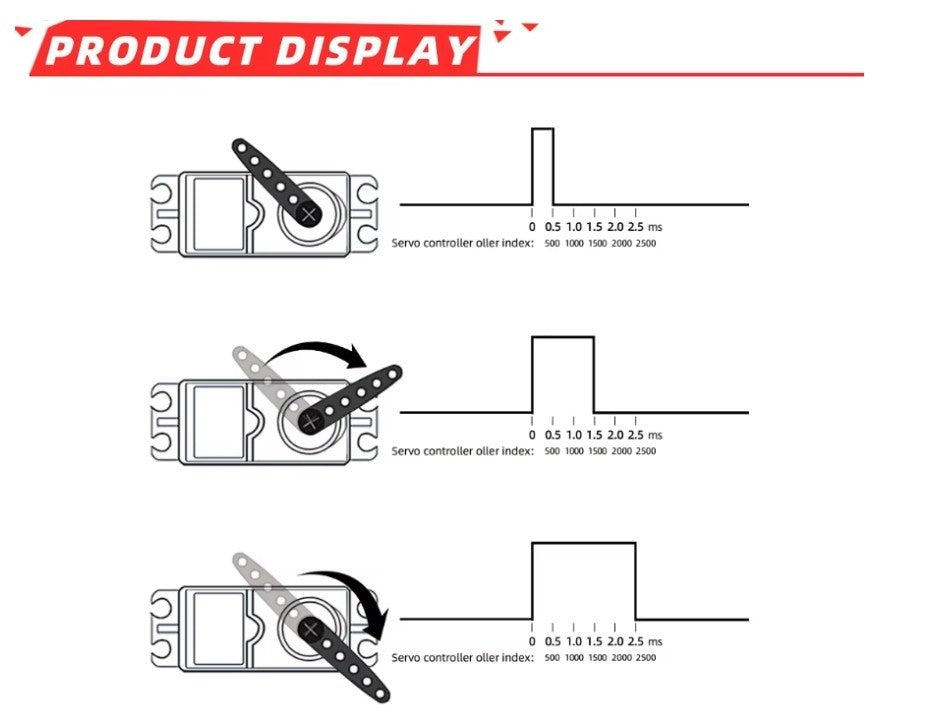

Max. operating angle: 180°±10°(500~2500 μs)

Dead band width: ≤ 3us
Mechanical limit angle: 180°
Communication interface: PWM

Motor type: Coreless motor
Housing material: ABS
Gear set material: Plastic / iron / copper gear
Weight: 9g

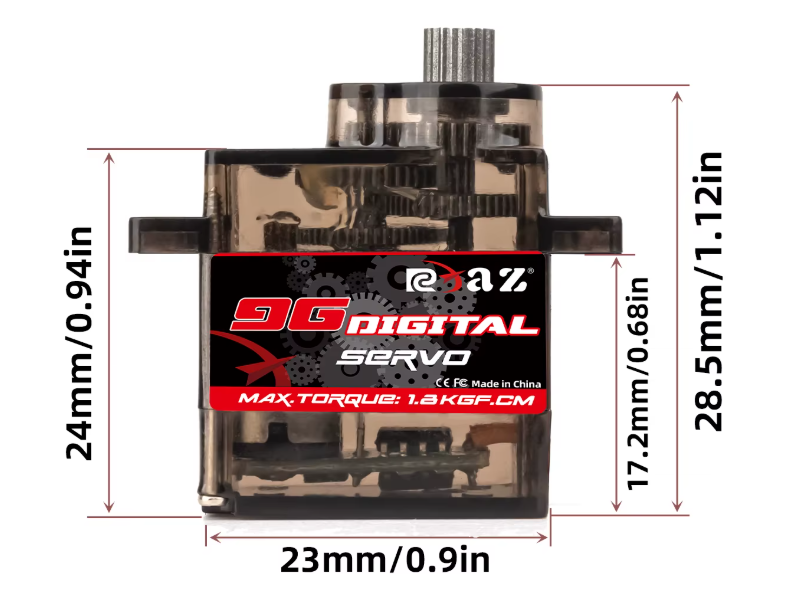

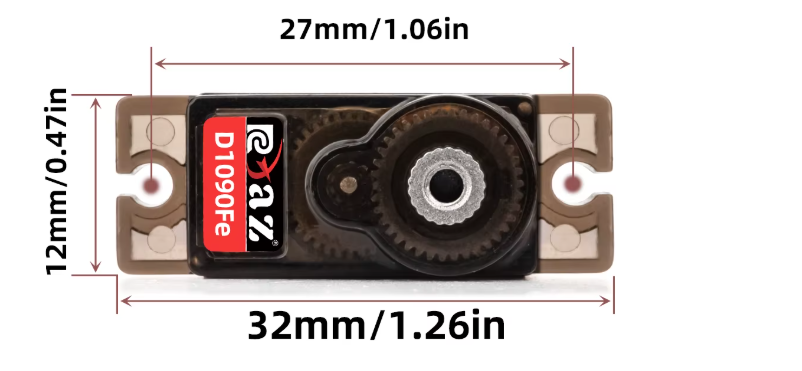

Size: 32.5 × 12.1 × 32 mm
Connector cable length: JR 200 ± 5 mm (exposed without connector)
